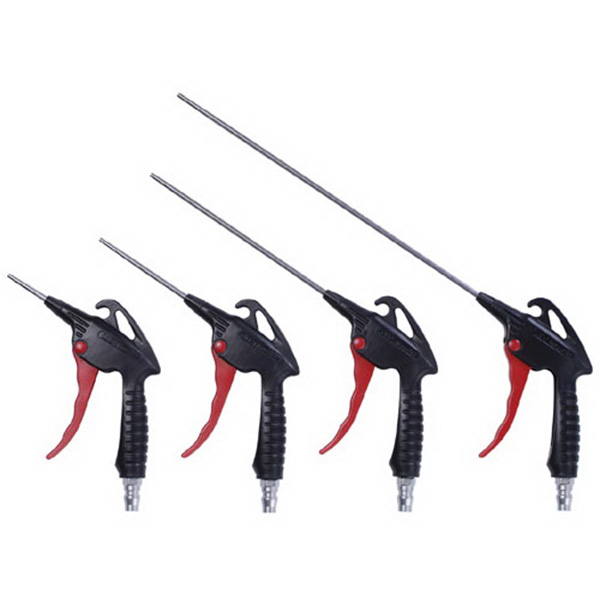

Air Gun JA
ㆍVariable flow control of the precise air outlet while reducing air consumption.
ㆍErgonomical design of the body for reducing user fatigue and discomfort.
ㆍImpact-resistant and lightweight engineering plastic composition.
ㆍAvailable in 4 different nozzle lengths for various applications.
Description
Product Catalog
| Applicable Fluid Type | AIR (No other type of gas or liquid) Do not use in water application | ||||||
| Working Pressure Range | 0~150PSI | 0~9.9Kgf/cm²(0~990KPa) | |||||
| Negative Pressure | -29.5in Hg | -750mmHg(-750Torr) | |||||
| Working Temperature Range | 32~140℉ | 0~60℃ | |||||
| Model | P | ∅D | L | E | J | WEIGHT(g) | BOX(EA) |
| JA0050 | PM20 | 3 | 169.9 | 96.8 | 50 | 116 | 40 |
| JA0100 | PM20 | 3 | 169.9 | 96.8 | 100 | 129 | 40 |
| JA0200 | PM20 | 3 | 169.9 | 96.8 | 200 | 136 | 30 |
| JA0300 | PM20 | 3 | 169.9 | 96.8 | 300 | 151 | 25 |
