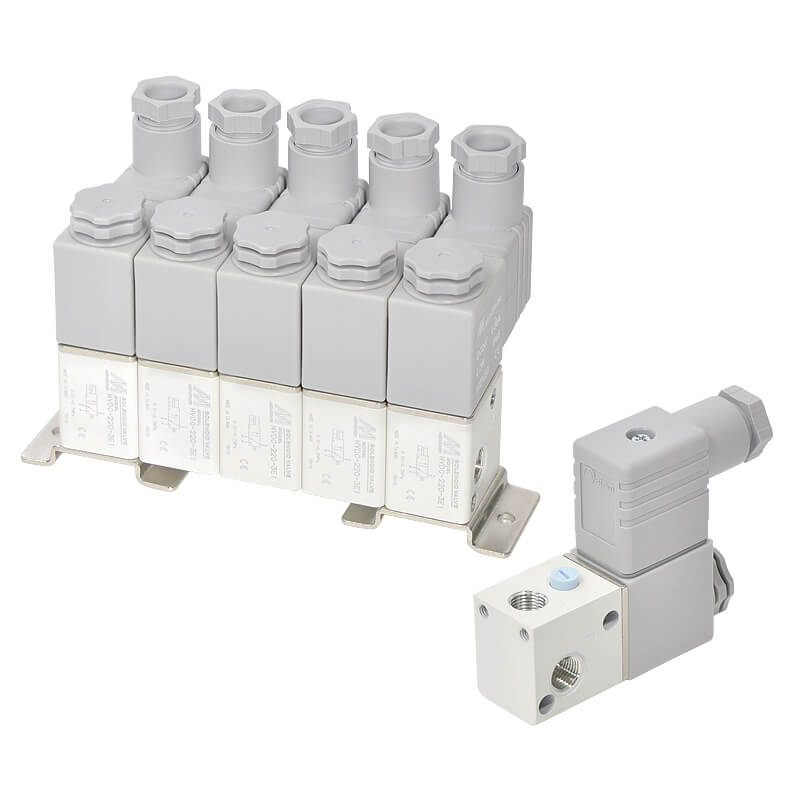

Solenoid valve MVDC-220
Solenoid valve MVDC-220
Direct operated, Body width: 22mm, Port size: Rc1/8, Operating pressure range: 0.01~0.7 MPa.
Description
Product Catalog
| Specification | |
| Body width | 22 mm |
| Bore No. | 6A |
| Port size | Rc1/8 |
| No. of port | 2, 3 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0~0.7 MPa |
| Flow | 44 l/min |
| Effective orifice | 0.8 mm2 |
| Response time | 20 ms |
| Ambient temperature | －5~＋50℃ (No freezing) |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=6/4.9VA, DC=2W |
| Available voltage range | ±10% |
| Insulation class | F class |
| Weight | 155 g |
