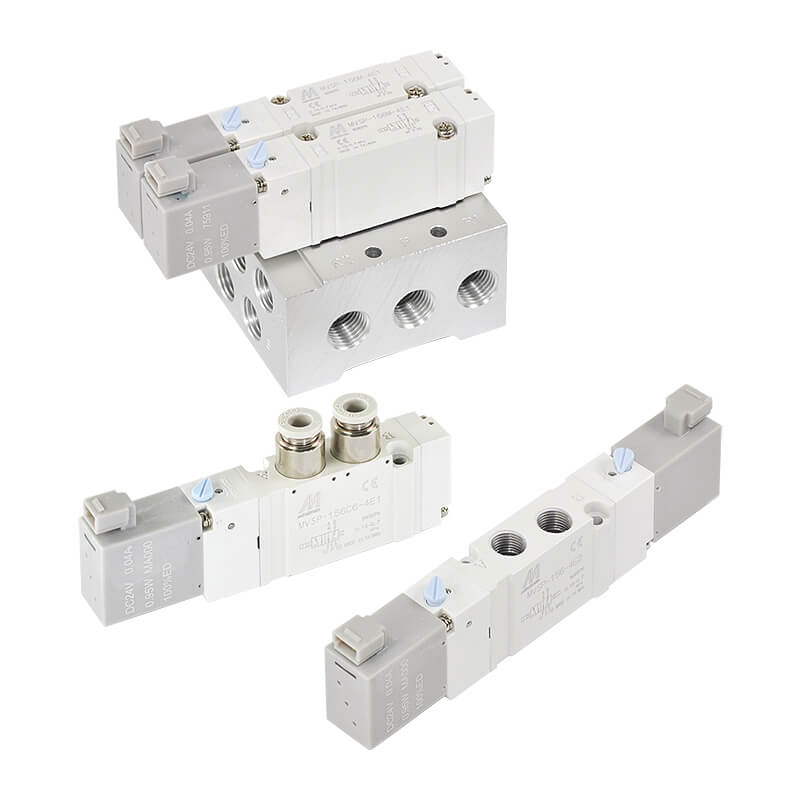

Solenoid valve MVSP-156
Solenoid valve MVSP-156
Body width : 15 mm, Port size: Rc1/8, Operating pressure range : 0.15~0.8 MPa, Proof pressure : 1 MPa, Flow : 381~762 l/min.
Description
Product Catalog
| Specification | |
| Body width | 15 mm |
| Bore No. | 6A |
| Port size | Rc1/8 |
| No. of port | 5 |
| No. of position | 2, 3 |
| Medium | Air |
| Operating pressure range | 0.15~0.7 MPa, 0.2~0.7 MPa (5/3) |
| Proof pressure | 1 MPa |
| Flow | 381~762 l/min |
| Effective orifice | Body ported : 11 mm2, 9.5/14.6/9.5 mm2 (C/P/R), |
| Manifold : 10 mm2, 7.5/13/8 mm2(C/P/R) | |
| Response time | 30 ms |
| Ambient temperature | －5~＋50℃ (No freezing) |
| Voltage | AC110V, 220V (50/60)Hz, DC12/24V |
| Power consumption | AC=2.5VA , DC=0.95W |
| Available voltage range | ±10% |
| Insulation class | F class |
| Weight | 83g, 118g, 127g |
