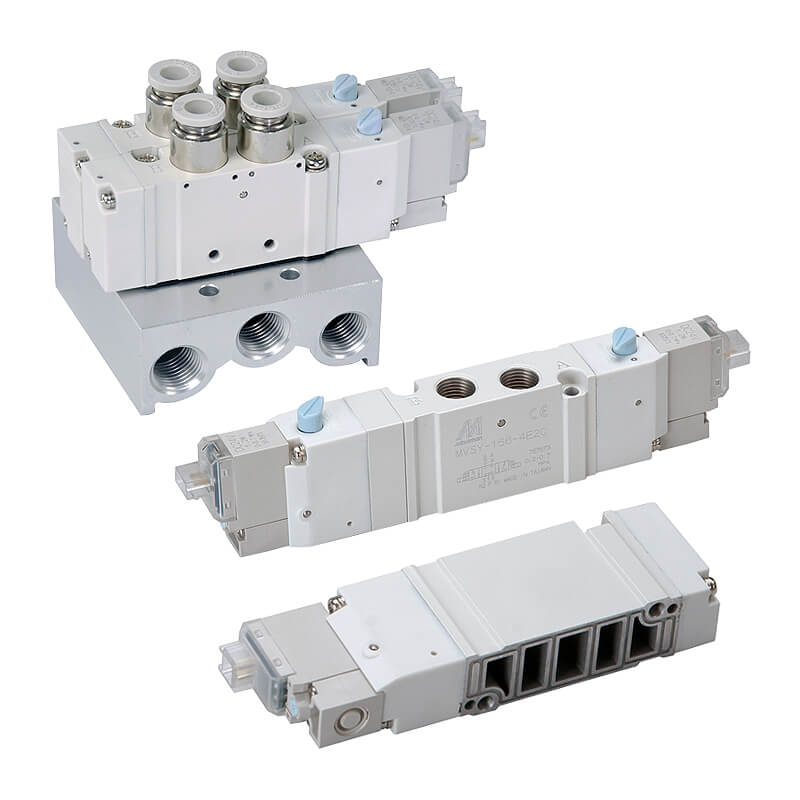

Solenoid valve MVSY-156
Solenoid valve MVSY-156
Body width: 15 mm, Port size: Rc1/8, Operating pressure range: 0.15~0.7 MPa, Proof pressure: 1 MPa, Flow: 381~1089 l/min.
Description
Product Catalog
| Specification | |
| Body width | 15 mm |
| Bore No. | 6A |
| Port size | Rc1/8 |
| No. of port | 5 |
| No. of position | 2,3 |
| Medium | Air |
| Operating pressure range | 0.15~0.7 MPa, 0.2~0.7 MPa (5/3) |
| Proof pressure | 1 MPa |
| Flow | 381~1089 l/min |
| Effective orifice | Body ported:11 mm2, 9.5/14.6/9.5 mm2 (5/3) |
| Manifold:10 mm2, 7.5/13/8 mm2 (5/3) | |
| Response time | 19 ms , 20 ms (5/3) |
| Max. operating frequency | 5 Hz |
| Ambient temperature | +5~+50°C |
| Voltage | AC110V, AC220V (50/60)Hz, DC6/12/24V |
| Power consumption | AC=1.6/2.5VA, DC6/12V=1.2W, DC24V=0.55W (LED indicator) |
| Available voltage range | ±10% |
| Insulation class | B class |
| Weight | 63g, 82g, 102g |
