Product Category

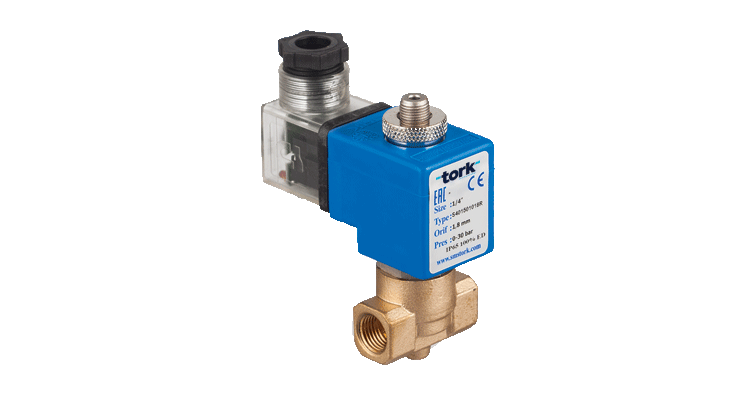

S4010 (TORK-Y) FUEL OIL , LIGHT OIL
- GENERAL DETAILS
- Wide pressure range, flow rate and orifis options.
- Solenoid valves are used with filters.
- Solenoid valves can be mounted in any position without affecting its operation.
- Coil to be used in a vertical position.
Description
Product Catalog
| Application | Fuel oil, diesel oil, hydraulic oil, burners |
| Size | 1/8″…….2″ BSP (on request NPT) |
| Pressure | 0,5 bar…16 bar, (1/8″, 1/4″:30 bar) |
| Tube and internal part | Stainless Steel |
| Body | Brass |
| Seal | VITON, RUBY |
| Temperature | .-10°C…160 °C |
| Position | Normally Closed |
| Coil Voltage | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC |
| Protection Class | IP65 and Exproof models |
