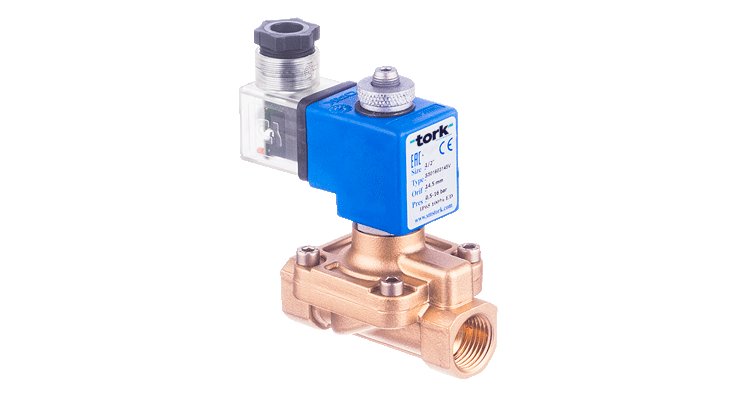

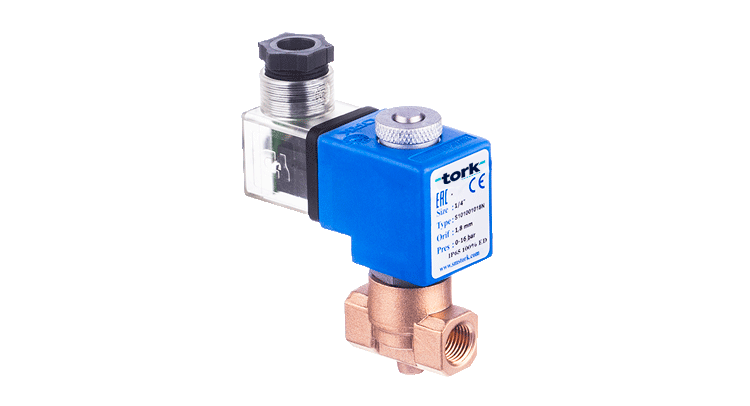

S5010 COMPRESSOR SOLENOID VALVES
GENERAL DETAILS
- Wide pressure range, flow rate and orifis options.
- Solenoid valves are used with filters.
- Solenoid valves can be mounted in any position without affecting its operation.
- Coil to be used in a vertical position.
- TORK S5010 series compressor solenoid valve is 2/2 way, normally closed and pilot operated.
- Working temperature: -10°C / + 160°C
- Minimum operating differential pressure 0.5 bar
Description
Product Catalog
| Application | Air, hot and oily air |
| Size | 1/8″…….1″ BSP (on request NPT) |
| Pressure | 0,5 bar…16 bar |
| Tube and internal part | Stainless Steel |
| Body | Brass |
| Seal | VITON |
| Temperature | .-10°C…160 °C |
| Position | Normally Closed |
| Coil Voltage | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC |
| Protection Class | IP65 and Exproof models |
