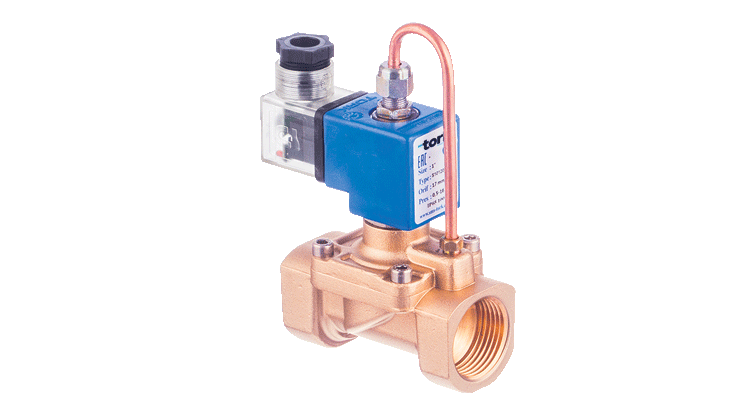

S5012 SERIES COMPRESSOR SOLENOID VALVES, NORMALLY OPEN
GENERAL DETAILS
- Wide pressure range, flow rate and orifis options.
- Solenoid valves are used with filters.
- Solenoid valves can be mounted in any position without affecting its operation. coil to be used in a vertical position.
Description
Product Catalog
| Application | Air, hot and oily air |
| Size | 1/8″…….1″ BSP (on request NPT) |
| Pressure | 0,5 bar…40 bar |
| Tube and internal part | Stainless Steel |
| Body | Brass |
| Seal | VITON |
| Temperature | .-10°C…160 °C |
| Position | Normally Closed |
| Coil Voltage | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC |
| Protection Class | IP65 and Exproof models |
